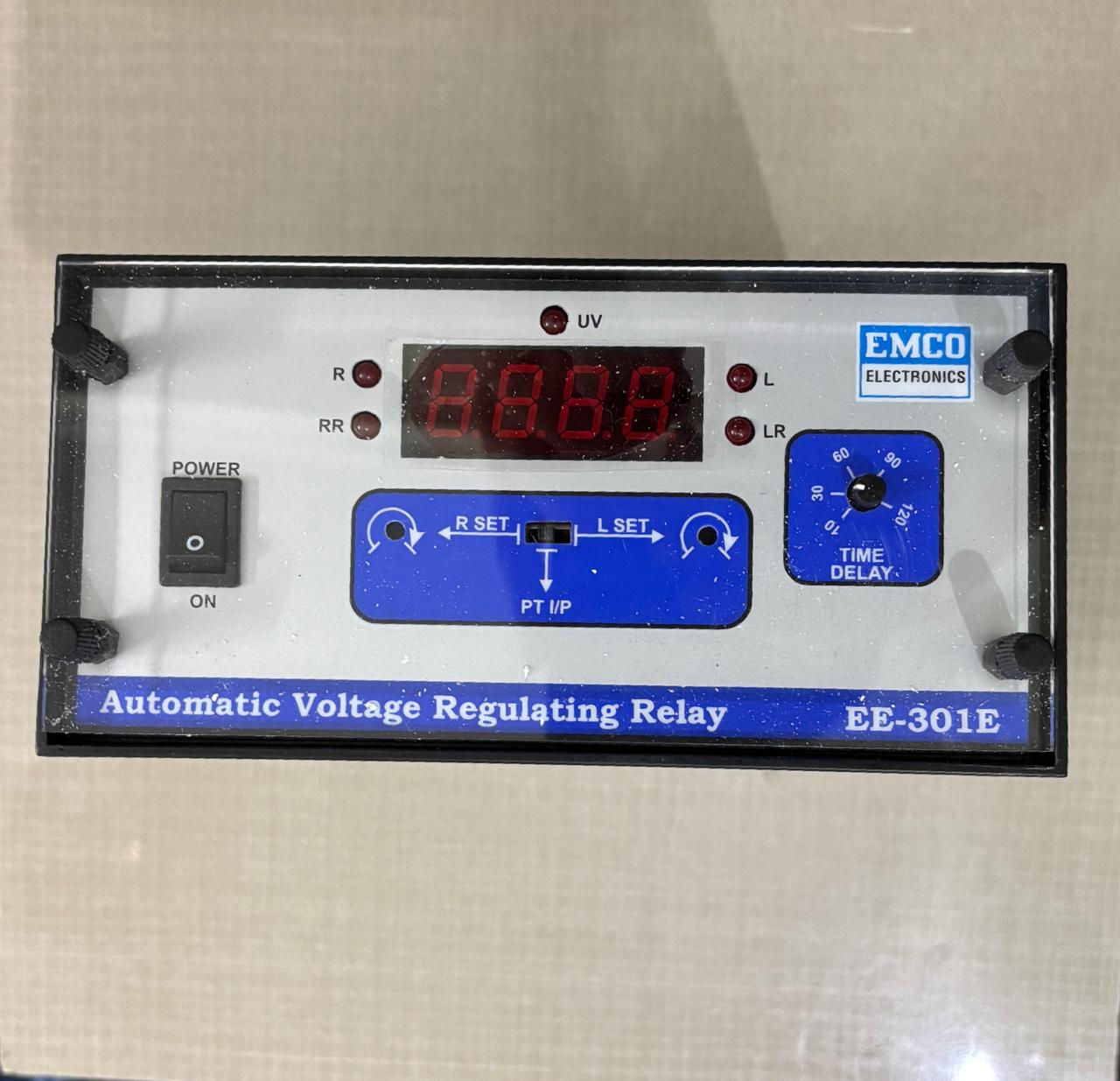

The Automatic Voltage Regulating Relay EE301E (AVR Relay) from EMCO is a precision-engineered voltage control device designed to maintain stable output voltage in generator sets, alternators, and industrial power systems. It continuously monitors system voltage and automatically adjusts excitation current to ensure consistent performance, even during sudden load fluctuations.
In modern electrical systems, voltage instability can cause serious damage to motors, transformers, control panels, and sensitive electronic equipment. The EE301E AVR Relay helps prevent over-voltage, under-voltage, and voltage fluctuation issues, thereby protecting critical infrastructure and improving overall power quality.

What is an Automatic Voltage Regulating Relay?
An Automatic Voltage Regulating Relay (AVR) is an electrical control device that stabilizes generator output voltage. When the system voltage deviates from the preset value due to changing loads or disturbances, the AVR automatically increases or decreases excitation current to bring the voltage back to its required level.

The EE301E AVR Relay ensures:
Stable and consistent voltage output
Improved generator efficiency
Protection against electrical stress
Reduced equipment downtime
Longer operational life of connected devices

Key Features of EE301E AVR Relay
High precision automatic voltage regulation
Continuous voltage sensing and fast correction
Protection against over-voltage and under-voltage
Reliable excitation control system
Compact and panel-mount design
Durable construction for industrial environments
Suitable for continuous duty applications
Easy installation and low maintenance

Applications
The Automatic Voltage Regulating Relay EE301E is widely used in:
Diesel Generator Sets
Alternators
Power Distribution Panels
Industrial Control Panels
Transformer Excitation Systems
Substations
Commercial and Industrial Power Systems
Standby and Prime Power Applications

It is suitable for industries such as manufacturing plants, power generation facilities, infrastructure projects, commercial buildings, and utility installations.

How the EE301E AVR Relay Works
The AVR continuously senses the generator terminal voltage. If the voltage rises above or falls below the set limit due to load variation, the relay automatically adjusts the excitation field current. This rapid response mechanism ensures voltage stability and prevents harmful voltage spikes or drops.

By maintaining constant voltage output, the AVR relay:
Protects motors from overheating
Prevents insulation damage in transformers
Reduces harmonic stress
Improves system reliability
Enhances overall electrical safety

Benefits of Using Automatic Voltage Regulating Relay
Maintains consistent power quality
Improves performance of generators and alternators
Reduces maintenance costs
Minimizes risk of equipment failure
Enhances operational efficiency
Supports stable power distribution

Why Voltage Regulation is Important
Unstable voltage can lead to frequent breakdowns, higher energy losses, and expensive repairs. In industrial environments where machinery runs continuously, proper voltage regulation is essential for uninterrupted operations. An Automatic Voltage Regulating Relay like the EE301E ensures smooth and efficient functioning of electrical systems.

Technical Overview
Product Name: Automatic Voltage Regulating Relay
Model: EE301E
Type: AVR Relay
Application: Generator and alternator voltage stabilization
Mounting: Panel Mount
Usage: Industrial and commercial electrical systems

Frequently Asked Questions (FAQ)
What is the purpose of an AVR relay?
An AVR relay stabilizes generator voltage by controlling excitation current and maintaining constant output voltage.
Where is Automatic Voltage Regulating Relay used?
It is used in diesel generators, alternators, substations, and industrial power control panels.
Why is voltage regulation necessary?
Voltage regulation prevents damage to motors, transformers, and electrical equipment caused by fluctuations.
Is EE301E suitable for industrial applications?
Yes, it is designed for reliable performance in demanding industrial environments.
