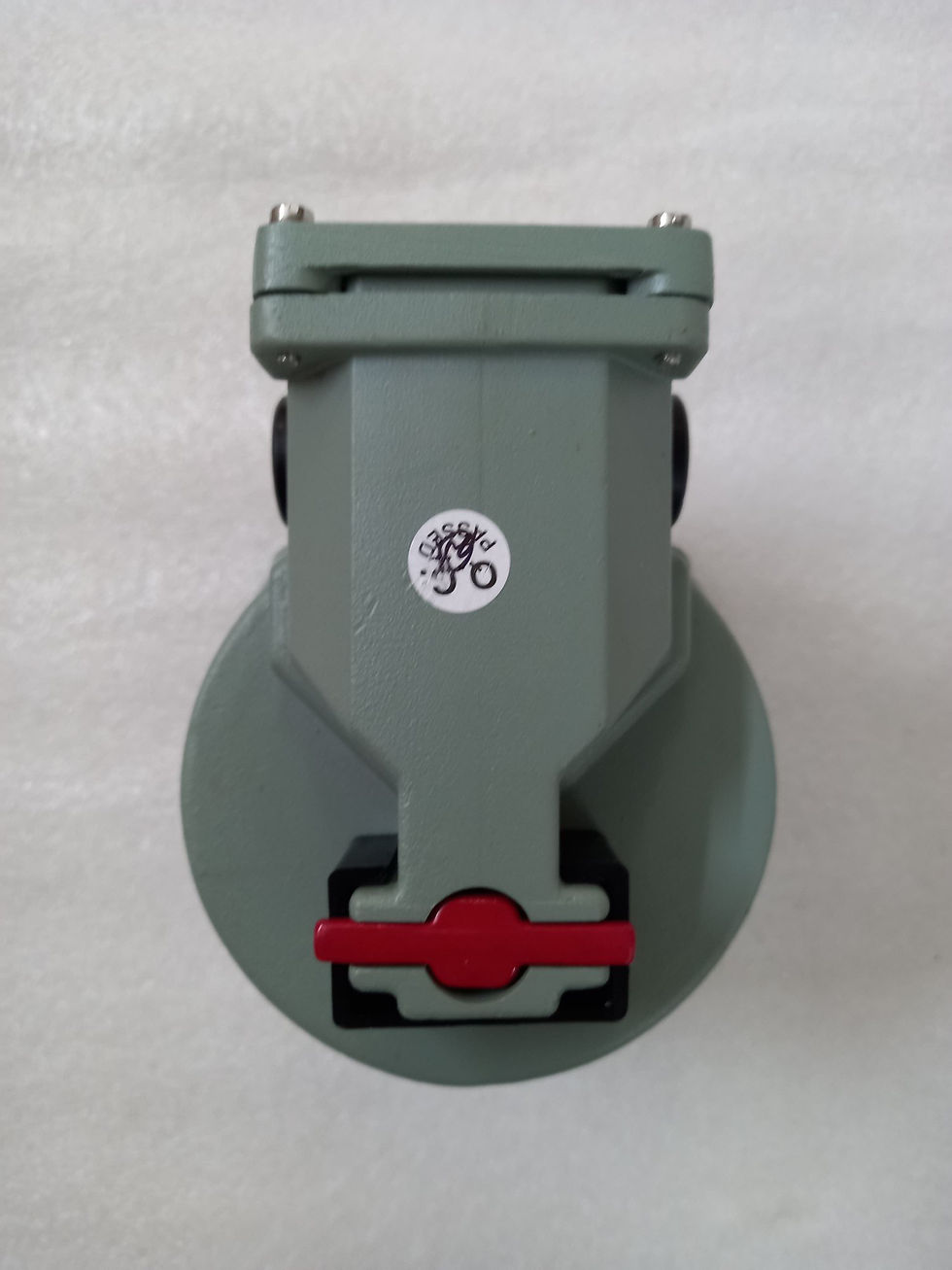

Transformer Pressure Relief Device (PRD) – Advanced Safety Protection
Reliable Pressure Protection for Oil-Filled Transformers
The Transformer Pressure Relief Device (PRD) is an essential safety component engineered to protect oil-filled power and distribution transformers from dangerous internal pressure build-up. In modern electrical systems, transformers operate under varying load and thermal conditions, which can sometimes lead to abnormal pressure rise due to internal faults, insulation breakdown, or oil decomposition.
A high-quality PRD ensures that this excess pressure is safely released before it reaches critical levels, preventing mechanical damage to the transformer tank and avoiding hazardous situations.
Why Pressure Control is Critical in Transformers
Inside an oil-filled transformer, electrical and thermal stresses can generate gases under fault conditions. These gases increase internal pressure rapidly. Without a proper release mechanism, the pressure can damage the transformer structure, resulting in oil leakage, equipment failure, or safety risks.
A Pressure Relief Device acts as a protective barrier by maintaining safe pressure limits and ensuring the transformer operates within secure conditions.
Smart Pressure Release Mechanism
The PRD works through a calibrated spring or diaphragm-based system that reacts instantly when internal pressure exceeds a predefined threshold.
Under normal conditions → the device remains sealed
During pressure rise → the device opens instantly
After normalization → it automatically reseals
This quick-response mechanism ensures that the transformer remains protected even during sudden fault conditions.
Key Features
• Instant response to pressure rise inside transformer
• Precision-calibrated pressure settings
• Heavy-duty construction for long-term reliability
• Leak-resistant sealing design
• Weatherproof body for outdoor installations
• Low maintenance and high durability
• Suitable for continuous operation environments
Where PRDs Are Used
The Transformer Pressure Relief Device is widely installed in:
Power transformers in substations
Distribution transformers in utility networks
Industrial transformer systems
Power generation facilities
Renewable energy transformer setups
These devices are a standard safety requirement in modern transformer installations.
Advantages of Using a PRD
Installing a PRD provides multiple operational and safety benefits:
Prevents tank rupture and structural damage
Minimizes risk of fire and oil leakage
Protects transformer insulation system
Enhances overall equipment reliability
Reduces unexpected downtime and repair costs
Designed for Harsh Electrical Environments
Our Transformer PRDs are built to withstand demanding operating conditions, including high temperatures, oil exposure, and outdoor weather environments. The robust design ensures consistent performance over long operational cycles, making them ideal for industrial and utility applications.
Supply & Service
We supply Transformer Pressure Relief Devices across India, covering major industrial regions including Delhi NCR, Mumbai, Chennai, Bangalore, and Hyderabad. Bulk orders, project requirements, and custom specifications can be supported with fast dispatch and reliable service.

transformer pressure relief device, PRD for transformer, transformer safety device, pressure protection transformer, transformer explosion protection, oil filled transformer safety device
Final Note

For any transformer installation, safety is non-negotiable. A properly designed Pressure Relief Device (PRD) ensures that your transformer operates securely under all conditions, protecting both equipment and infrastructure.
